SPECIFICATIONS

Adjustment: MIL

Brand Name: WestHunter,WestHunter

Click Value: 1/5 MIL

Coating: FMC

Eye Relief: 101.2mm

Field of View: 109.2-18.2ft @100yds

Focal Plane: Second Focal Plane

Function: Lens

Hign-concerned Chemical: None

Illumination: Red & Green

Length: 25cm/9.84inch

Lens coating: Fmc

Magnification: ≤6

Model: HD 1-6X24 IR

Model Number: HD 1-6X24 IR

Nitrogen Filled: YES

Objective Lens Dia.: 24MM

Origin: Mainland China

Shockproof/Fogproof/Waterproof: Yes

Side Focus: No

Tube Dia: 30mm

Tube Dia.: 30MM/1.18inch

Type: RIFLE

Waterproof: IPX4

Weight: 447g/15.77oz

illumination: Yes

Features:

• 1/5 MIL Turret with lock system & re-set to zero system

• Red Green Illuminated Reticle, Glass Etched Reticle

• Fully Multi-Coated Lens

• Flip up lens covers, scope rings and sunshade are included

• QTA (Quick Tactical Adjustment) tactical turrets with precise 1/5 MIL click value for wind and elevation adjustment

• Nitrogen purged scope body, completely sealed with o-ring, rendering scope waterproof, and fog proof



Specification:

Magnification: 1-6x

Length: 25cm/9.84inch

Weight: 447g/15.77oz

Tube Dia.: 30MM/1.18inch

Click Value: 1/5MIL

Objective Lens: 24mm

Eye relief: 101.2mm

Field of View: 109.2-18.2ft @100yds

Exit Pupil: 16-4mm

Elevation Range(@ 100 yds): ≥ 50MIL

Windage Range(@ 100 yds): ≥ 50MIL

Parallax Setting: 100yds

Fast focus eyepiece: yes

Sealing gas used: Nitrogen

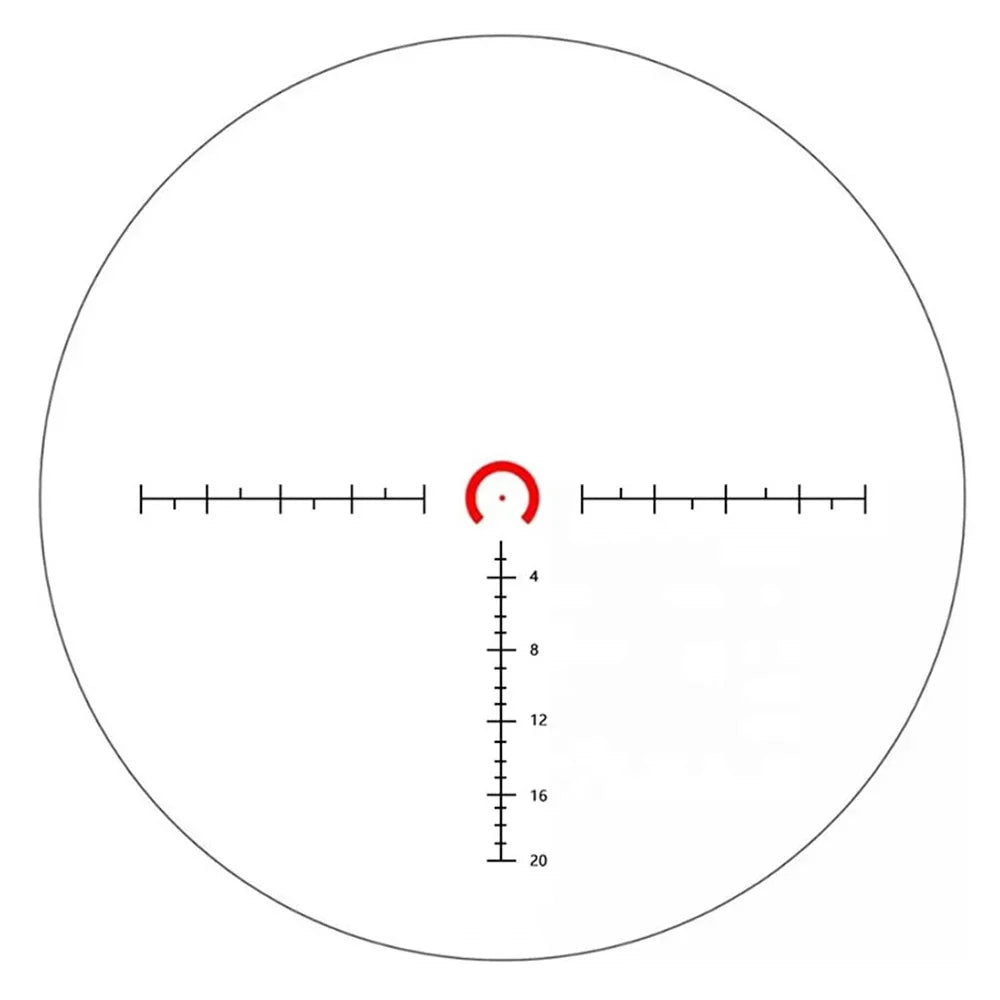

Reticle: Etched Glass

Illumination: Red & Green

Maximum resolution in Arc. Second (min. Magnification): 11

Maximum resolution in Arc. Second (max. Magnification): 7

Coating: FMC

Nitrogen Filled:YES

Shock-Proof:YES

Water-Proof:YES

Fog-Proof:YES

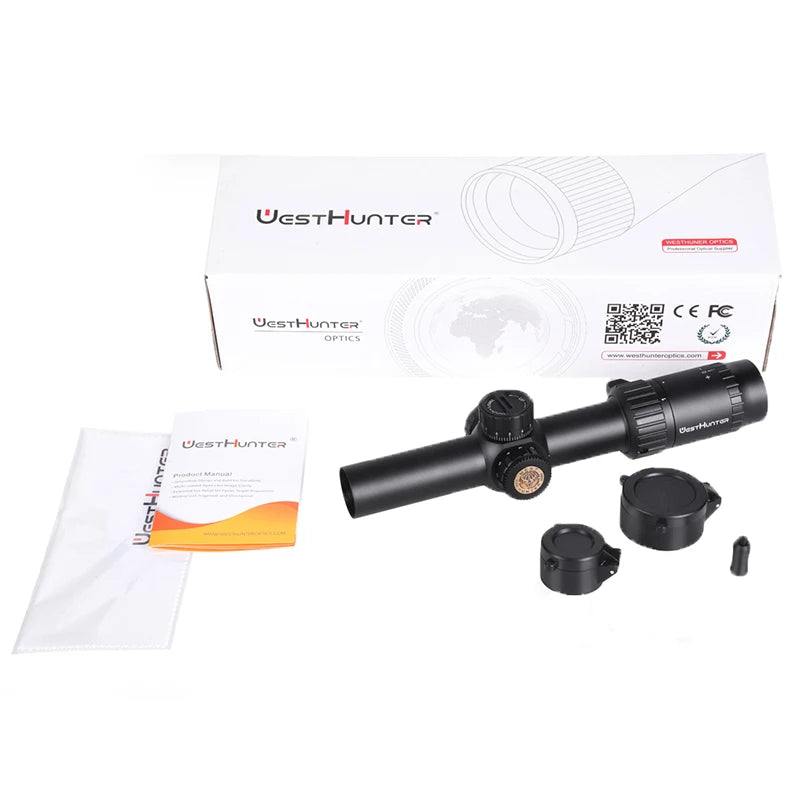

Packaging:

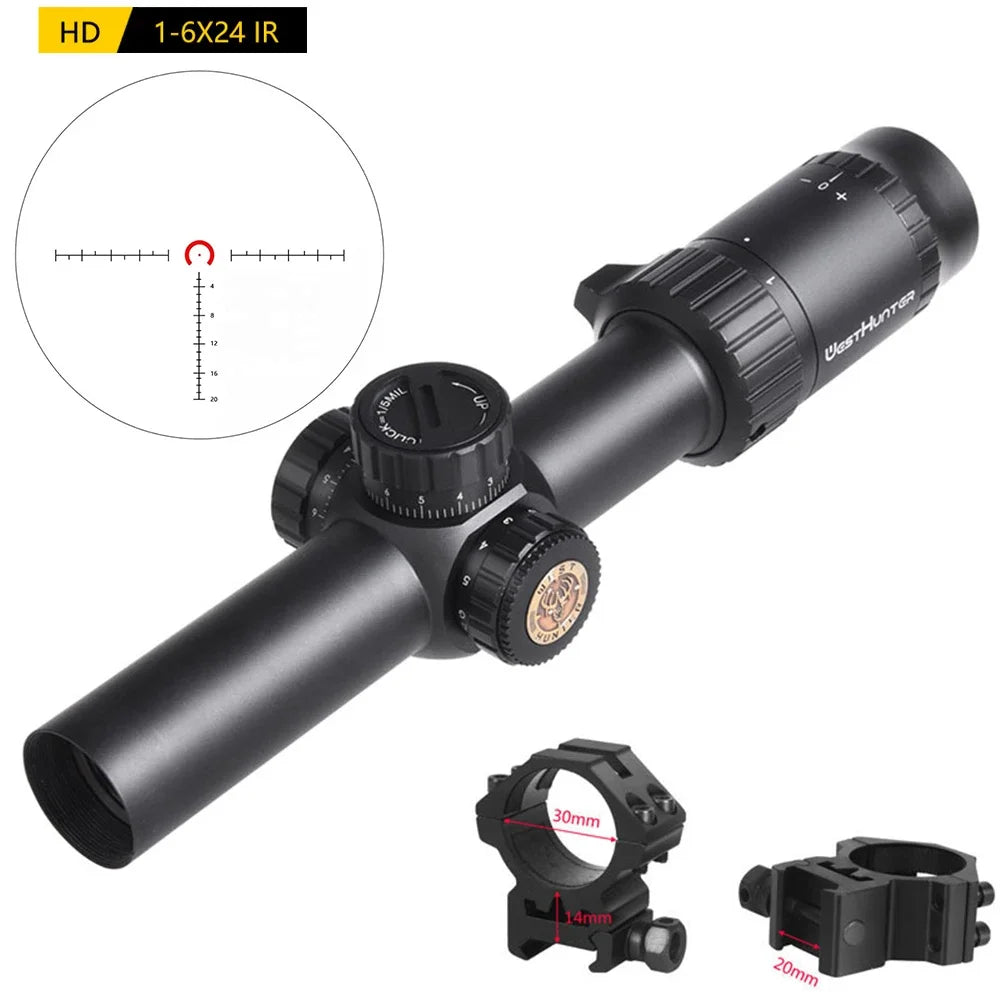

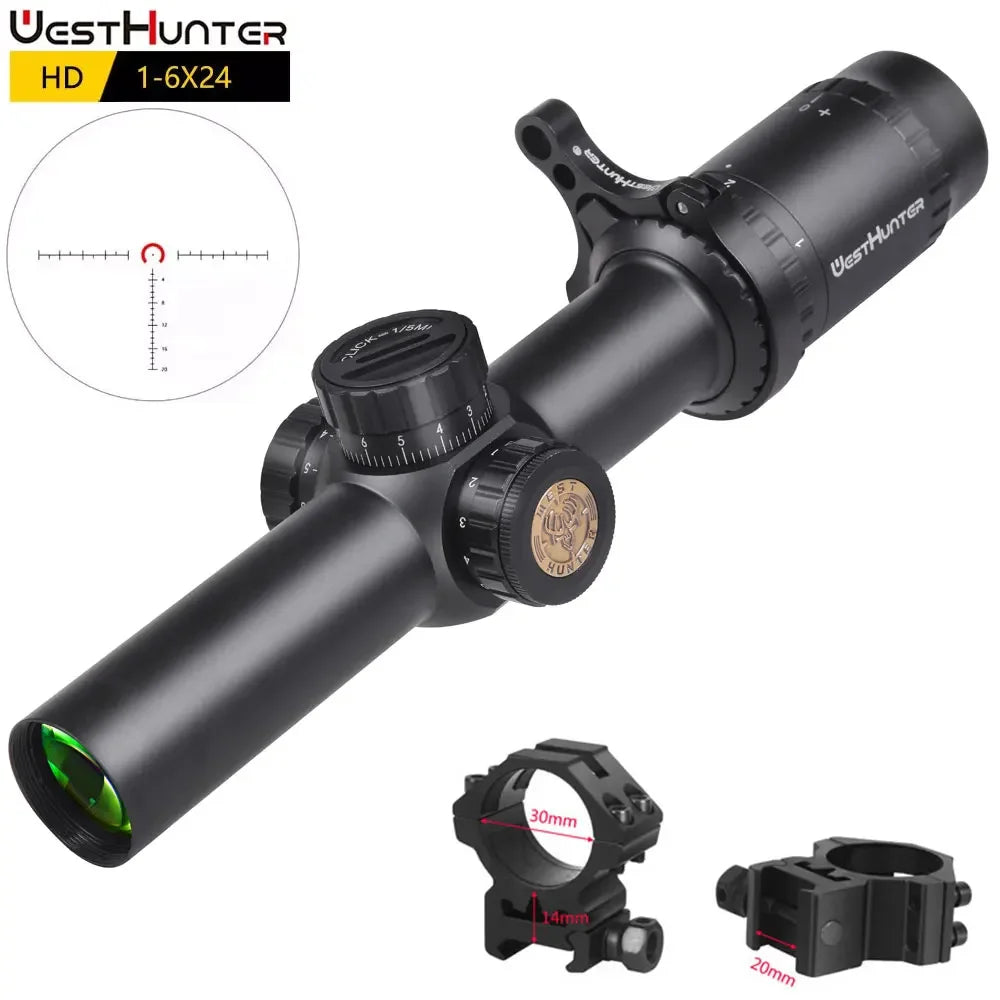

1.HD 1-6X24 IR Compact Scope*1

2.Flip Covers*2

3.Magnification Adjustmnet Lever*1(Not the ring lever)

4.Cleaning Cloth*1

5.Manual*1

6.Packing Case*1

7.Scope Mounts
